Transmission ratio: 170/20=8.5
Pointer shaft span: 15
Module: 0.2
Length of shaft extension: 4.6
Distance between centers: 14.5
Distance between holes: 9
Taper ratio: 1:20
Hole diameter: 4.0
Material of pointer shaft: Lead brass / Stainless steel

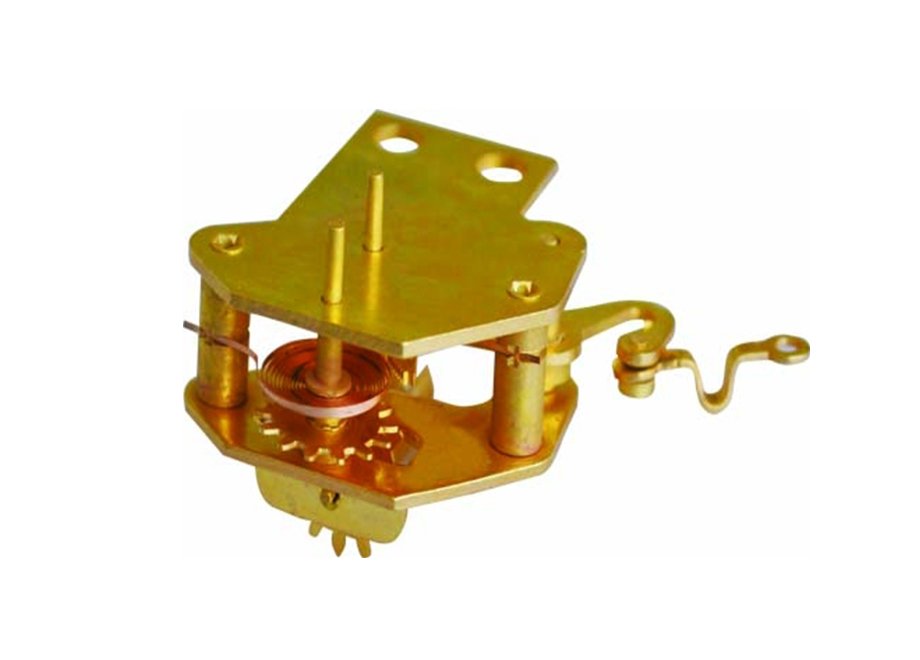

FY(A)C60-H(G)20W is a reverse pressure gauge movement for mechanical gauge assemblies. Use the specifications below to compare the gear ratio, shaft geometry and mounting layout with your instrument drawing.
Transmission ratio: 170/20=8.5
Pointer shaft span: 15
Module: 0.2
Length of shaft extension: 4.6
Distance between centers: 14.5
Distance between holes: 9
Taper ratio: 1:20
Hole diameter: 4.0
Material of pointer shaft: Lead brass / Stainless steel
Before ordering, confirm the rotation direction, pointer fit, linkage position and mounting dimensions against your assembly drawing. Where alternatives are listed, specify the required version. Please provide the model, drawing or sample, required quantity and operating conditions for a compatibility review and quotation.
