Transmission ratio: 107/13=8.23
Pointer shaft span: 11.3
Module: 0.15
Length of shaft extension: 3.8
Distance between centers: 12
Distance between holes: 7
Taper ratio: 1:20
Hole diameter: 2.1/2.7/3.0
Material of pointer shaft: Lead brass / Stainless steel

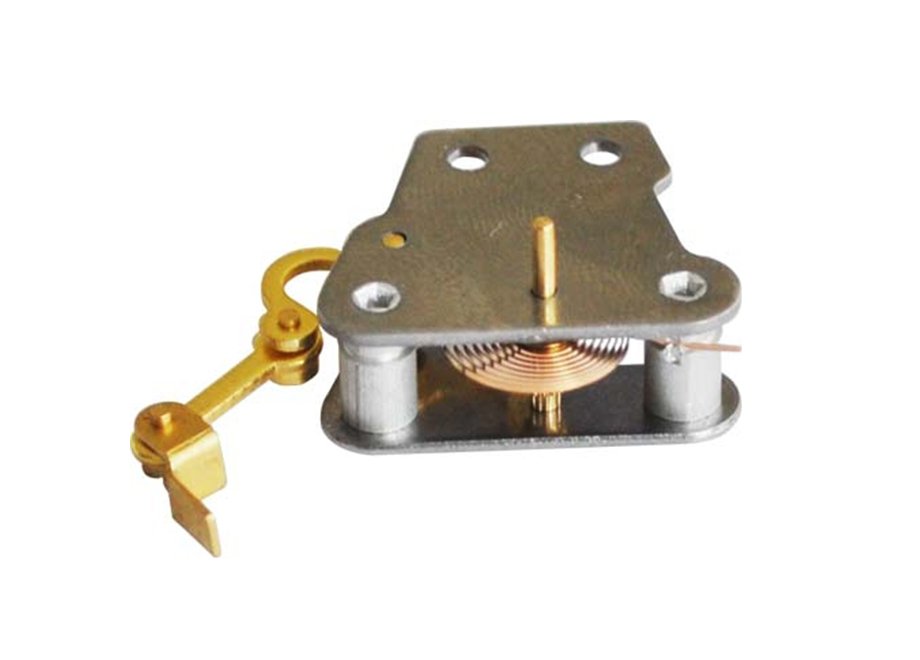

FY(A)C4001-H(G) is a reverse pressure gauge movement for mechanical gauge assemblies. Compare the listed transmission and mounting specifications with your instrument drawing before selecting a version.
Transmission ratio: 107/13=8.23
Pointer shaft span: 11.3
Module: 0.15
Length of shaft extension: 3.8
Distance between centers: 12
Distance between holes: 7
Taper ratio: 1:20
Hole diameter: 2.1/2.7/3.0
Material of pointer shaft: Lead brass / Stainless steel
Confirm the rotation direction, pointer fit, linkage position and mounting layout against your assembly drawing. Where alternatives are listed, specify the required version. Send the model, drawing or sample, quantity and operating conditions for a compatibility review and quotation.
Read our pressure gauge movement selection guide for the information to check before ordering.
